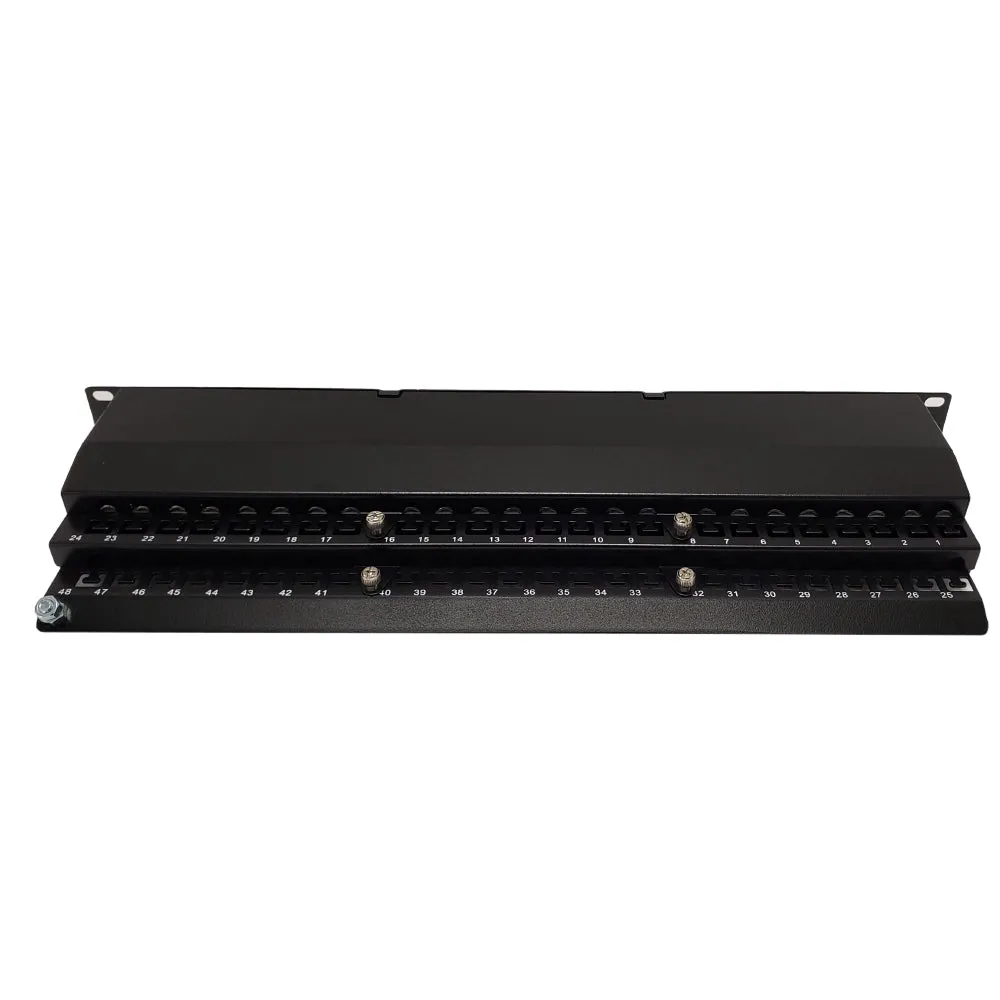

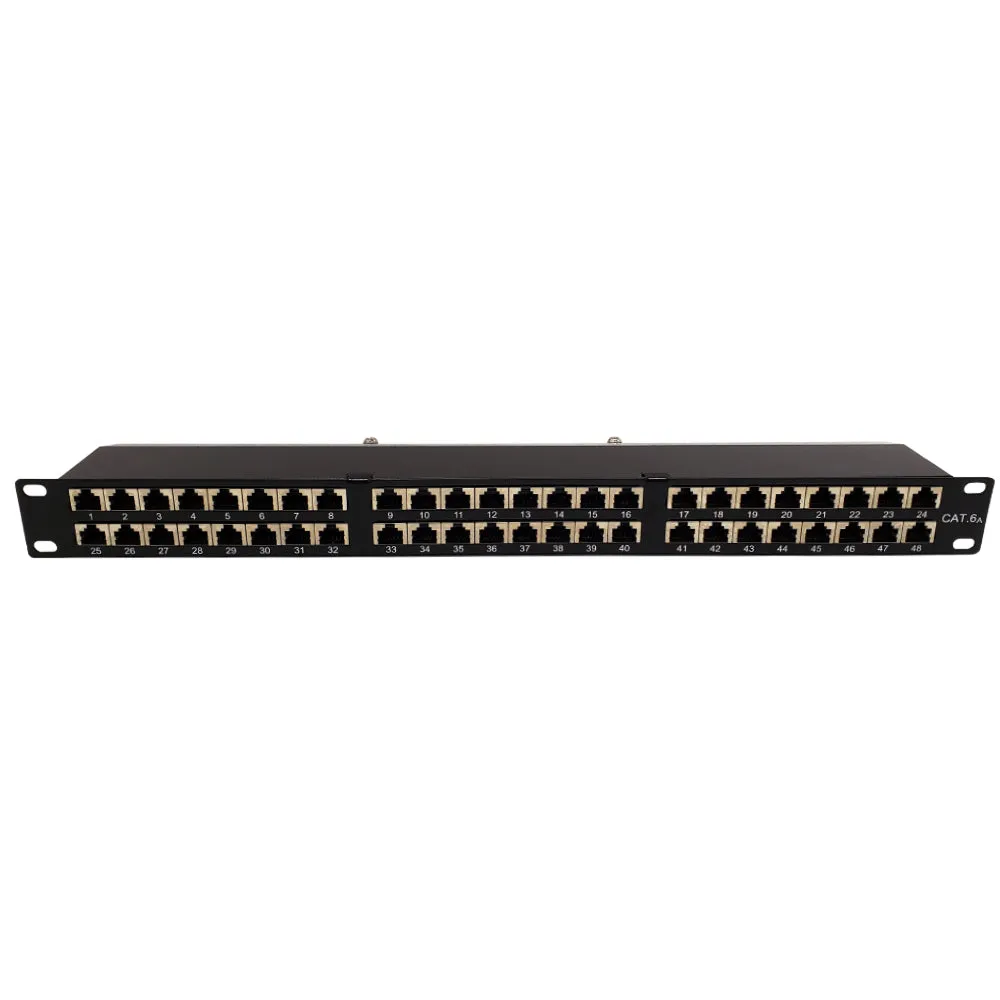

This 48 port Cat6a 1U shielded patch panel has shielded RJ45 female ports on the front and 110 punch-down style terminals on the rear. It has a built in cable manager and is meant to be mounted on a 19" rack or cabinet. It provides an easy method to terminate raw Cat6a shielded cable runs.
Physical Characteristics | |
|---|---|
| Color | Black Powder Coated |
| Panel Material | Front: SECC Steel, 1.5mm thickness Middle: SECC Steel, 1.0mm thickness Top: SECC Steel, 1.0mm thickness |
| Jack Material | Housing and Contact Bracket: PBT Glass Fiber |
| Jack Contact Material | Phosphor Bronze with Nickel Plating |
| Jack Contact Finish | Gold Plated |
| Jack Shield | Bronze with Nickel Plating |
| Connector Type | Cat6a |
| Color Code | 568A or 568B |
| Operating Temperature | -10 deg C to 60 deg C |
| Ports | 48 |
| Rack Space | 1U |
| Product Dimensions | 19" W x 1.7" H [48 cm W x 4.3 cm H] |
| Insertion Force | 30N max |
| Retention Strength | 7.7 kg between jack and plug |
| Rackmountable | Yes, 19" Rack or Cabinet |
| Cable Management | Yes |
Connectors | |
| Front | 48 - RJ45 Shielded CAT6a Female |

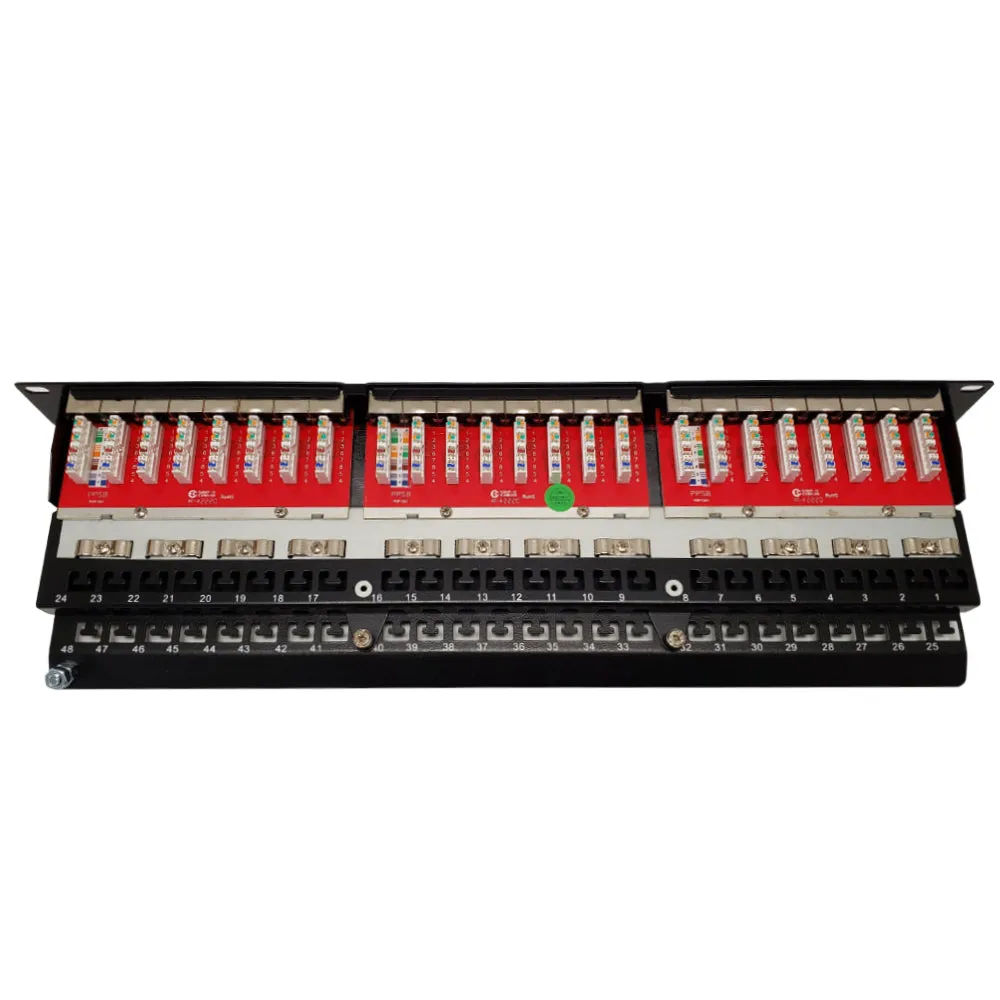

| Rear | 12 x 8 Pair - 110 Style Shielded Punch-Down Terminations |
Compatible Tool | |
| TLH-410 | |
Environmental | |
| RoHS | Yes |
Packaging Information | |

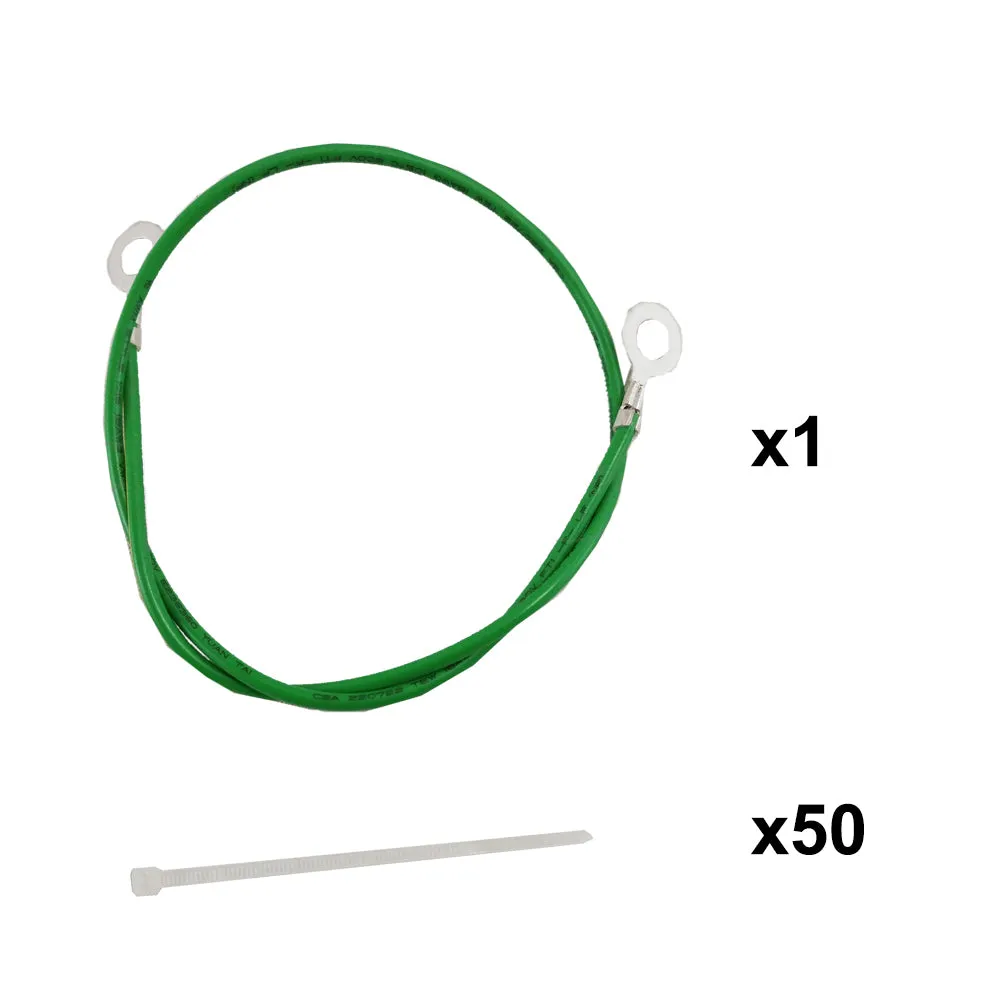

| Package Quantity | 1 - Patch Panel 1 - Cable Jacket 50 - Cable Ties |
| Product Weight | 5.1 lbs [2.3 kg] |
